Economic Die Cut Line

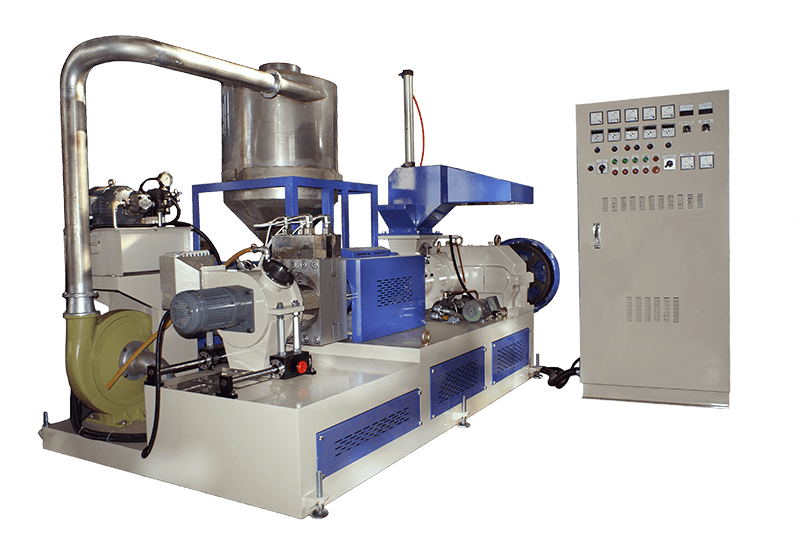

Economic Die Cut Type Plastic Waste Pelletizing Machine
SE/WR-120E
- It’s economic for saving cost.
- Small dimension of working space.
- Design of air cooling type.
- The die could be disassembled to change the cutting knife fast with the fast joint.
- The temperature of the pellets could be cooled by equipping the multi-fins evaporator.
| 120 MM DIE CUT TYPE PLASTIC WASTE PELLETIZING MACHINE (ECONOMIC DIE CUT TYPE) | ||
| MODEL | SE/WR-120E | |
| MATERIAL | HDPE/LDPE WASTE FILM | |
| OUTPUT | 50 KG/HR (MAX) | |
| EXTRUDER | SINGLE TYPE | |
| DRIVE MOTOR | 30 HP+ INVERTER | |
| SPEED RANGE | STEPLESS | |
| SCREW DIAMETER | 120 MM | |
| L/D RATIO | 9 | |
| TEMP.CONTROL | 8 ZONES | |
| SCREEN CHANGER | 3 HP PUMP | |
| FEEDING TYPE | 0.3 KG-M TORQUE MOTOR x 2 | |
| MACHINE DIMENSION | HAND PUTTING TYPE OR FEEDING BY AIR CYLINDER | |
| DIE & CUTTING DEVICE | TYPE | GEAR TYPE |
| MOTOR | 1 HPx4P WITH REDUCER | |
| CUTTER | 2 PICS | |
| COOLING UNIT | BY EVAPORATOR | |
| DELIVERING UNIT & STORAGE TANK | DELIVERY UNIT | 3 HP BLOWER |
| STORAGE TANK | Stainless Steel SUS #304 | |
