Pelletizing Line - DC type

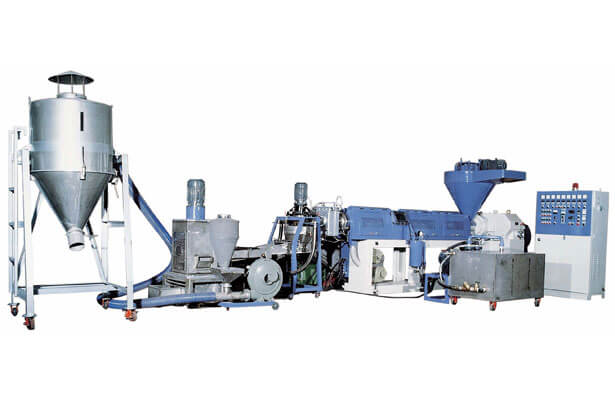

Die Cut Type Plastic Waste Pelletizing Machine
SE/WR-100DC
- To reduce the source waste.
- Keep the environment clean, and reduce to be broken the environment secondly.
- We are the professional manufacturer and experience supplier for Waste recycling making machine.
- High efficiency screen change equipment controlled by oil hydraulic to exchange the two filters without stopping machine.
- The motor is controlled by inverter. The motor with inverter can be adjusted the speed and it’s stability and low power consumption is better than V.S. motor.
- It is equipped with vacuum vent tank with waste water disposal tank which take the gas off promptly and dehydrate thoroughly to get cleaner pellets.
- It is convenient to keep the machine life as well as maintenance
| Model | SE/WR-100DC |
| Material | hd ld pp crusher film |
| Output kg/hr | 150 – 250 |
| Extruder | |
| Drive motor | 60 hp |
| Speed range | 2 step |
| Screw diameter (mm) | 100 - 125 |
| L:D ratio | 34:1 |
| Barrel With Pressure Meter | |
| Vacuum device | 5 hp vacuum pump with water filter trough |
| Temperature control | 9 zones |
| Die | Downward cut type |
| Cutter | 3 pcs. sus #304 |
| Motor | 3 hp AC + inverter |
| Screen change | Hydraulic (7 1/2 hp) |
| Vertical dehydration unit | Stainless steel made |
| Motor | 5 hp AC + 3 hp pump |
| Delivery unit | 3 hp blower |
| Cooling tank | Stainless steel made |
| Capacity (kg) | 300 |
| Force feeding hopper (hp) | 5 |
| Floor dimensions (m) | 11 x 4 x 3 |
