PH Making Line
Permeation Hose Making Machines

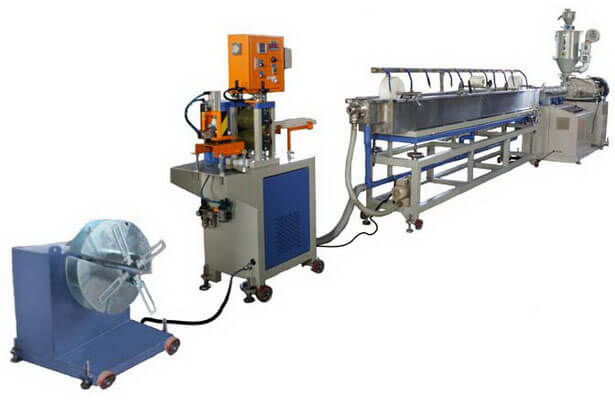

Permeation Hose Making Machines (PH-65)
- This machine could be developed from Green Build Target.
- The hose which is filled up with water is utilized for capillaceous permeation theory to permeate uniformly the water into soil in the garden.
- This machine is easy to operate and produce.
- It equips the autoloader with the heating dryness tank, and it keeps the raw material to dry.
- It can be adjusted the winding width and dismantle the product conveniently with specially fixed design
- We are the professional manufacturer and experience supplier for Permeation hose making machine.
| 65mm PERMEATION HOSE MAKING MACHINE | |||
| MODEL | SE/PH-65 | ||
| MATERIAL | PS-475 | ||
| OUTPUT | 50-60 KG/HR | ||
| EXTRUDER | SINGLE TYPE | ||
| DRIVE MOTOR | 30 HP + INVERTER | 1 SET | |
| SPEED RANGE | STEPLESS | ||
| SCREW DIAMETER | 65 MM | 1 SET | |
| L/D RATIO | 30 | ||
| TEMP. CONTROL | 6 ZONES | ||
| DIE | TYPE | HOSE FORMED DIE | |
| COOLING UNIT | WATER TANK | DIMENSION | L 4500×W 350× H 301 |
| MATERIAL | SUS 304# | ||
| WEIGHT | 350 KG | ||
| DOUBLE WHEEL TAKE-OFF UNIT | TAKE-OFF MOTOR | 2 HP + INVERTER | |
| DIMENSION | L 850×W 500× H 1680 | ||
| WEIGHT | 250 KG | ||
| FIXED WINDER | POWER MOTOR | 1/2 HP DC MOTOR | |
| REEL SIZE | INSIDE DIAMETER ψ180-200 | ||
| OUTSIDE DIAMETER ψ620 | |||
| DIMENSION | L 800×W 500× H 1050 | ||
| MATERIAL | S50C (MEDIUM CARBON STEEL) | ||
| MACHINE WEIGHT | 2600~2700 KG | ||
